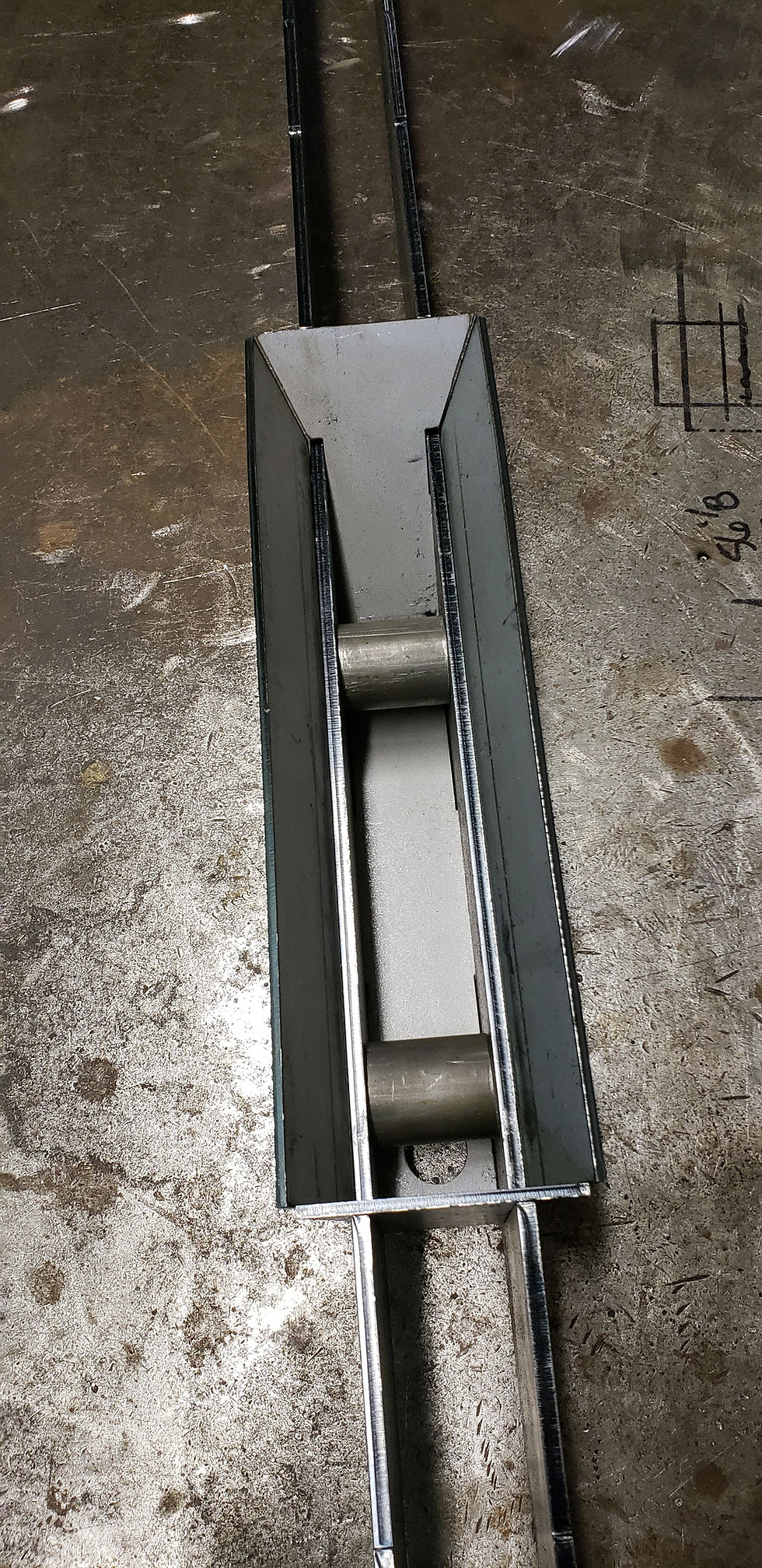

TT Motorsports 49 ", 55" and 60" trailing arm Kits. Available Welded or as a Weld it Yourself kit. WIY Perfect Setup for your Prerunner, Rock Crawler, Trophy Truck or Offroad Vehicle.
Cad Designed and CNC Laser cut and Bent for superior fit and finish.
Tab and Slot Design make assembly a breeze. Overlay plates add strength where it is needed without unnecessary weight by using thicker material than needed.
Trailing arms are designed for 1.5" width shock spacers and 1/2" bolts. Can be drilled for larger diameter bolts. MUST USE +3" Longer lower shock eyelets to clear trailing arms
Main ribs are 3/16 Steel. Trailing arm construction and Overlays are 10ga Plate. Comes with 1 1/4" RH threaded bung. Front Bushing Kit available for additional Cost. Can be ran with Uniball front pivot as well with some very minor trimming.
60inch Links are 31inches from bushing center to coilover and have a 7inch spread between shocks.
55 Inch Links are modified 60inch links. Comes with new formed rear outer plates. Buyer is responsible to cut and modify main ribs and a few other pieces to achieve 55inch length. 4" off rear and 1" off front of links are removed.
Urethane bushing option is for a 3.5" Wide bushing assembly, with a 3/4" bolt and 2"x.250 DOM outer sleeve.
These kits are a WIY kit consisting of the plates and Bung. Shock Tubes will be up to fabricator to supply 1.75" and 3/4" OD Tubes to cut and assemble with supplied prints.
*** WELDED KITS ARE SPECIAL CONSTRUCTION KIT SUBJECT TO 50% CANCELLATION FEE AFTER CONFIRMATION VIA EMAIL WHEN ORDERED***
***** Current lead time on this is around 3 weeks to ship out *****
Installation Instructions Click Here
